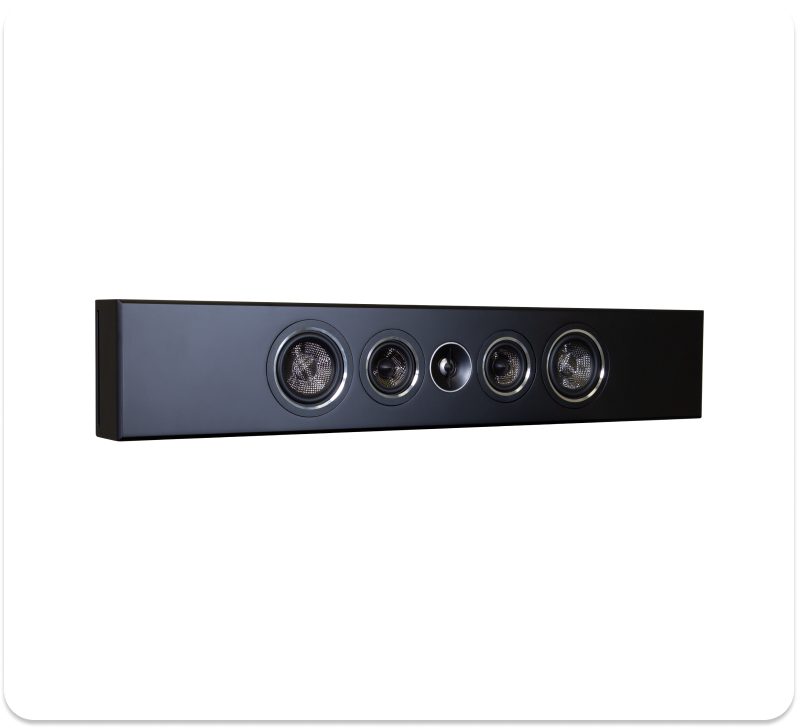

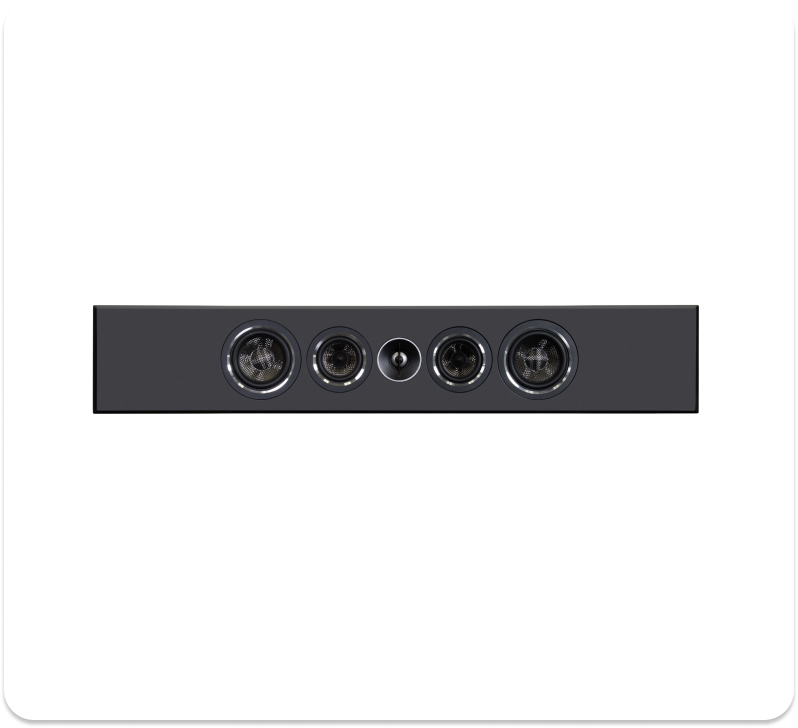

PSB PWM2 – On-Wall Speaker
Discover superior audio quality with the PSB PWM2, a sleek on-wall speaker designed for an exceptional auditory experience. Achieve an expansive soundstage, whether vertically or horizontally mounted. The advanced driver and cabinet design guarantee remarkable sound dispersion, precise tonal balance, and extended bass. The PWM2, renowned for its elegance and versatility, seamlessly blends installation flexibility with sophisticated design, delivering the acclaimed PSB sound. Elevate your audio experience with these top-tier Soundworks speakers, perfect for wall installations.
Features
Innovative 3-Way Design
The PWM2 upholds PSB’s renowned on-wall speaker legacy with an innovative 3-way design. Featuring a 1″ titanium tweeter, dual 3″ mid-range drivers, and dual 4″ woofers, it ensures exceptional tonal balance and detail. This design minimizes distortion and interference between frequency components, providing an accurate and detailed audio reproduction for both music and movies.
Precision Engineering for Impeccable Detail
Engineered as a true sonic masterpiece, the PWM2 boasts advanced drivers with four-layer voice coils and carbon fiber cones. This engineering marvel delivers impeccable detail, minimal distortion, and impressive power handling. The 1″ titanium dome tweeter, cooled with ferrofluid and equipped with a Neodymium magnet, ensures remarkable sensitivity and seamless sound transitions.
Versatility in Design for Any Setup
The PWM2 is a versatile on-wall speaker adaptable to various applications, serving as a left, center, right channel, or surround speaker. This flexibility allows seamless integration into any home audio setup, offering the freedom to configure a multi-channel audio system for home theaters, music listening areas, or surround sound setups.
Innovative 3-Way Design
The PWM2 upholds PSB’s renowned on-wall speaker legacy with an innovative 3-way design. Featuring a 1″ titanium tweeter, dual 3″ mid-range drivers, and dual 4″ woofers, it ensures exceptional tonal balance and detail. This design minimizes distortion and interference between frequency components, providing an accurate and detailed audio reproduction for both music and movies.
Precision Engineering for Impeccable Detail
Engineered as a true sonic masterpiece, the PWM2 boasts advanced drivers with four-layer voice coils and carbon fiber cones. This engineering marvel delivers impeccable detail, minimal distortion, and impressive power handling. The 1″ titanium dome tweeter, cooled with ferrofluid and equipped with a Neodymium magnet, ensures remarkable sensitivity and seamless sound transitions.
Versatility in Design for Any Setup
The PWM2 is a versatile on-wall speaker adaptable to various applications, serving as a left, center, right channel, or surround speaker. This flexibility allows seamless integration into any home audio setup, offering the freedom to configure a multi-channel audio system for home theaters, music listening areas, or surround sound setups.
Specifications
| Frequency Response | |
|---|---|
| On Axis @ 0° ±3dB | 70 - 23,000Hz |
| LF Cutoff -10dB | 40Hz |
| Sensitivity | |
|---|---|
| Anechoic Chamber | 86dB |
| Listening Room | 89dB |
| Impedance | |
|---|---|
| Nominal | 8 Ohms |
| Minimum | 6 Ohms |
| Acoustic Design | |
|---|---|
| Tweeter (Nominal) | 1" (25mm) Titanium Dome with Ferrofluid |
| Midrange (Nominal) | 2 x 3" (75mm) Carbon Fibre Cone Rubber Surround, Cast Basket |
| Woofer (Nominal) | 2 x 4" (100mm) Carbon Fibre Cone Rubber Surround, Cast Basket |
| Design Type | Bass Reflex |
| Construction | |
|---|---|
| Cabinet | MDF |
| Grille Face | Acoustic Transparent Cloth |
| Frame | MDF |
| Size (W x H x D) | |
|---|---|
| Net W | 36” (914mm) |
| Net H | 6.5” (165mm) |
| Net D | 3.38” (85mm) |
| Depth With Grill | 3.5” (90mm) |
| Finish | |
|---|---|
| Available Finishes | Satin Black, Satin White |

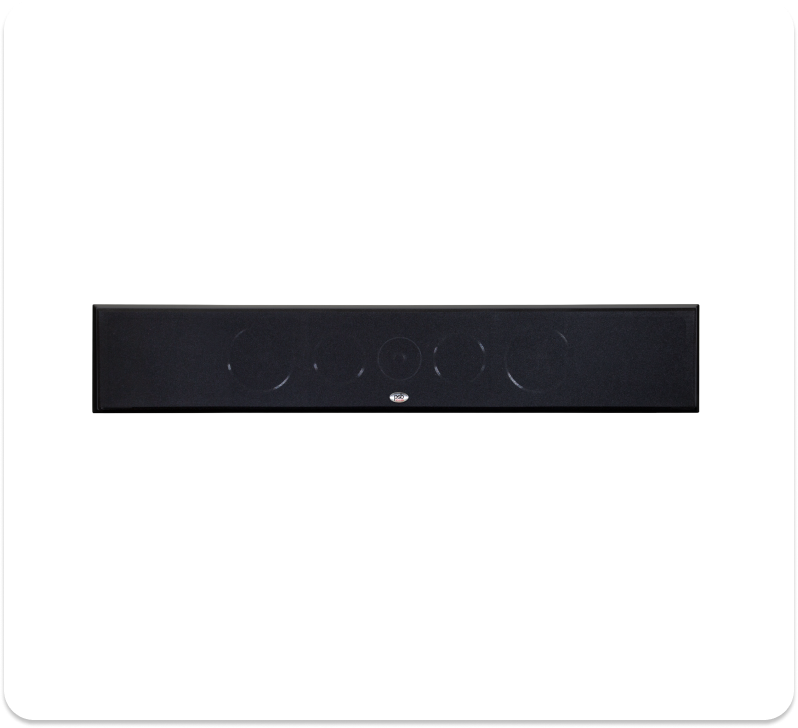

| Grille Type | Magnetic, Cloth Grille |
| Wall Bracket | |
|---|---|
| Mount |
Wall Mount included for Vertical and Horizontal Mounting Note: Bracket is not designed as ceiling mount |
